FOUR CHANNEL SET

U4HS - set
U4HS
Download:
Catalogue card:

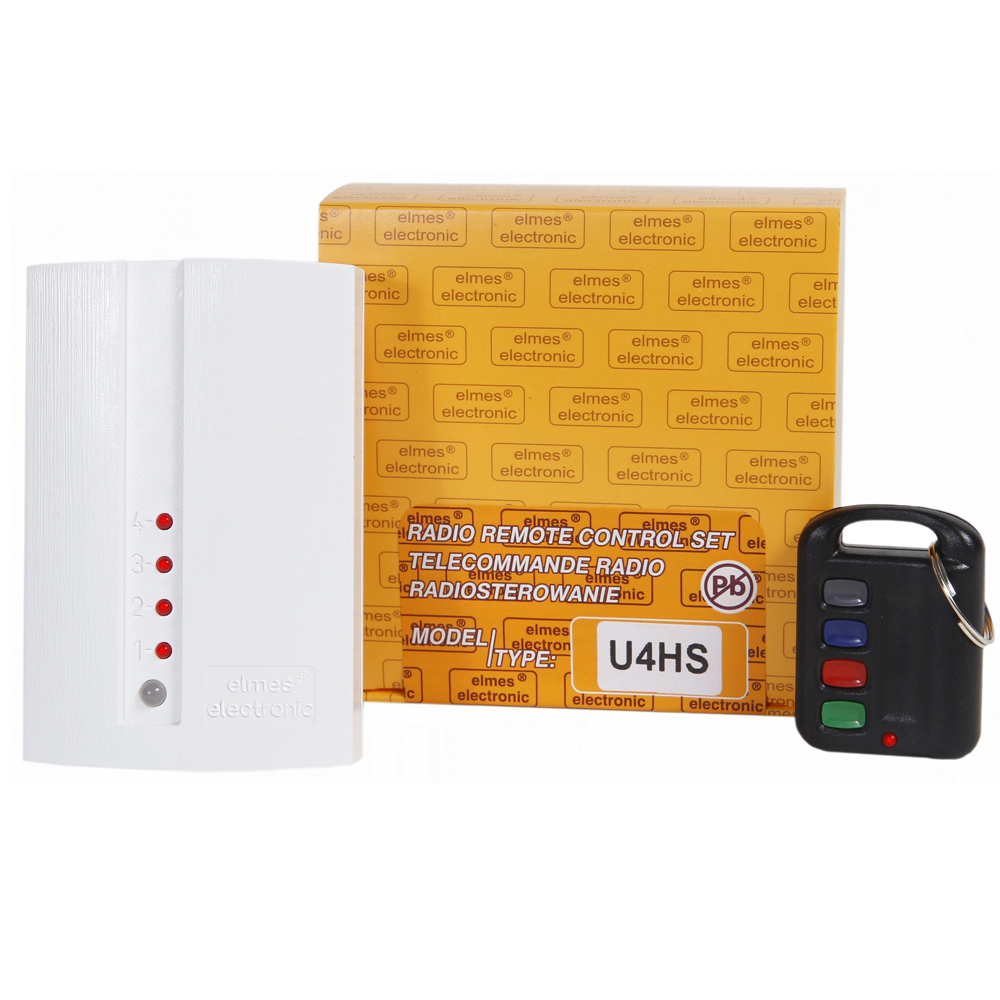

  The U4HS set consists of four channel receiver U4HR and one four channel keyfob transmitter CH4HT. The set is designed for use in alarm systems and remote control applications. The U4HR receiver features excellent sensitivity, selectivity and complies with the latest EU relevant standards concerning SRD (Short Range Devices) of remote control products.The U4HR receiver operates with all Elmes Electronic 434 MHz hoping code radio band transmitters, wireless detectors and fixed code RP501T transmitter. The U4HS includes many useful functions as specified below:

Basic operation modes to be selected by user

  • ON/OFF (bistable output mode)
  • automatic OFF after programmed time (monostable output mode timing: from 0,25s up to 4 hrs)
  • mini alarm control panel


Technical specification

  • dynamic code system KEELOQ of  Microchip Corp. USA
  • operating frequency: 433,92 MHz
  • receiver’s memory capacity: 112
  • receiver’s power supply:  12 VDC
  • transmitter power supply: battery 12V 23A
  • approximate range in open field: 150m
  • output relay ratings:  60VA (128VAC/1A) each
  • number of channels/relay ourputs: 4
  • superheterodyne receiver module with sensitivity: -105 dBm,
  • current consumption: 20mA plus 40mA on relays set
  • operating temperature range from -20 to + 40C,
  • signal output S (1A/60V max.)  OC type,
  • sabotage alarm terminals NC type (at box closed)
  • external dimmensions: (L/W/D) 96/63/28mm.
