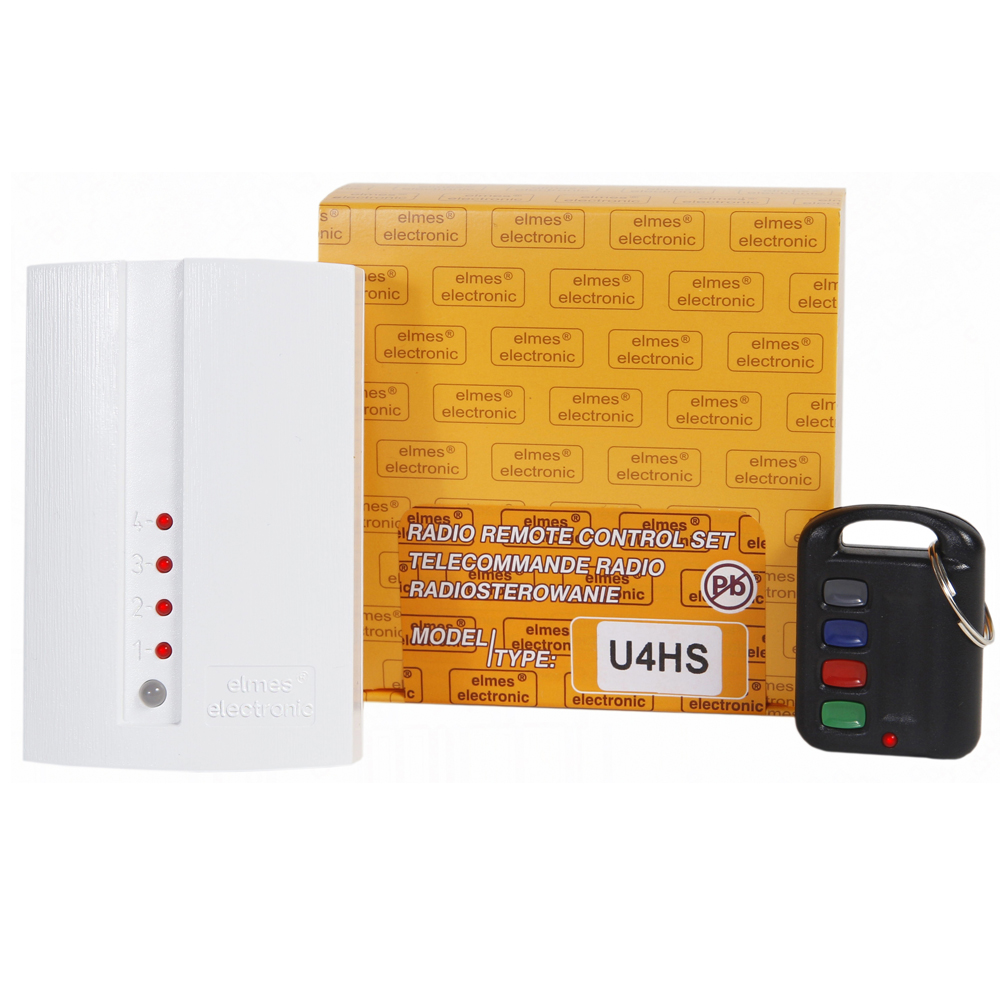

CH4HS SET it is a previous model of U4HS with the same look.
FOUR CHANNEL WIRELESS CONTROL SET WITH CODE HOPPING SECURITY AND UP TO 200m (CH4H200) OPERATING RANGE (433,92 MHz)
Four channels universal remote control set consists of receiver and one four button key-fob hand transmitter. The set is designed for use in alarm systems and operates with up to 40 (up to 112 on option) Elmes Electronic made KEELOQ® encrypted signal transmitters and wireless detectors. Advanced software options of the receiver allow simple wireless control panel operation mode to be selected by set of jumpers on receiver's board. In that mode receiver's outputs adopt special functions required in control panel. In standard operation mode receiver provides four programmable and isolated NO/NC (NO-normally opened, NC-normally closed) relay outputs and external siren/beeper control output S. Output terminals allow easy connection of external devices. The outputs relay action may be latched (on/off) or time-lapse mode depending on programming made by the user. The S output (open collector type) is for connecting external signalling device and delivers two short pulses (two beeps) on relay set and one (one beep) on relay reset. The receiver features built in bicolour LED that is used for programming indication. Four other LED diodes indicate channel outputs set on. The set may be optionally ordered with super heterodyne receiver (CH4Hhet) offering better operating range and greater rejection of interfering radio signals.
- the set consists of radio receiver and two key fob hand transmitters,
- operating frequency band is 433,92MHz,
- up to 100 metres operating range,
- four NO/NC relay outputs operating in pulse or on/off modes,
- transmitters low battery monitoring,
- up to 40 transmitters in standard version.
Receiver with superhet module available !
