ONE CHANNEL LONG RANGE SET, PANIC BUTTON, RECEIVER WITH 12-24V POWER SUPPLY

AN200HS-HET set
AN200HS-HET
Catalogue card:

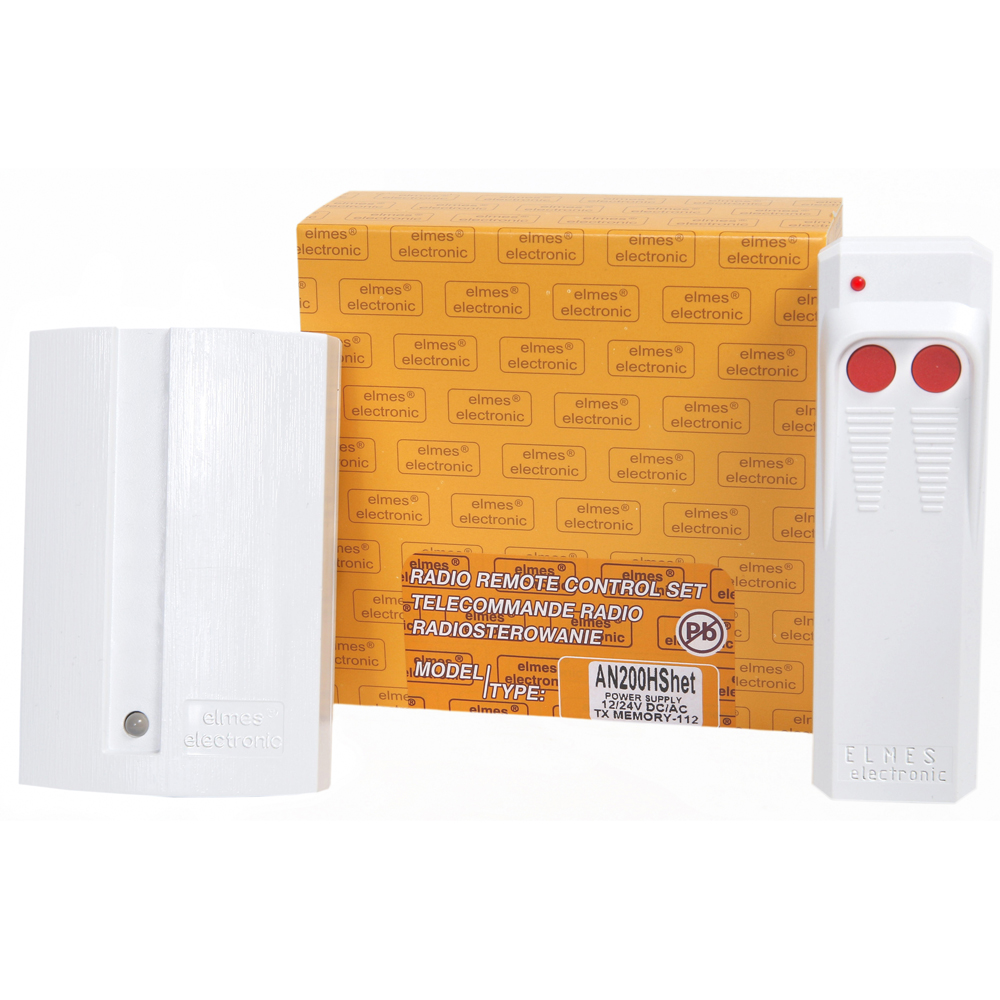

The AN200HS-HET set consists of one receiver UMB100HR-HET with wide range of power supply voltage and one channel, long range hand transmitter AN200HT. The set is widely used in security and alarm systems as wireless personal panic button. It may also be used for remote starting of entry delay, system arming/disarming and access control. The UMB100HR-HET receiver features excellent sensitivity, selectivity and complies with the latest EU relevant standards concerning SRD (Short Range Devices) of remote control products. The AN200HS-HET includes many useful functions as below:



Receiver's basic operation modes to be selected by user

  • ON/OFF (bistable output mode)
  • automatic OFF after programmed time (monostable output mode timing: from 0,25s up to 4 hrs)
  • winch control mode



Technical specification

  • dynamic code system KEELOQ of  Microchip Corp. USA
  • operating frequency: 433,92 MHz
  • number of channels/relay ourputs: 1
  • average range: 250m in open field
  • receiver’s memory: 112 transmitters/keyfobs
  • receiver’s power supply: 10..35 VDC or 12..27 VAC
  • output relay ratings:  1A, 120VAC/30VDC
  • superheterodyne receiver module with sensitivity: -105 dBm,
  • current consumption:

 - at 12VDC: 12 mA + 28 mA relay set on,
 - at 24VDC: 6 mA + 14 mA relay set on,

  • operating temperature range from -20 to + 40C,
  • signal output S (1A/60V max.)  OC type,
  • sabotage alarm terminal NC type (at box closed)
  • external dimmensions: (L/W/D) 96/63/28mm.

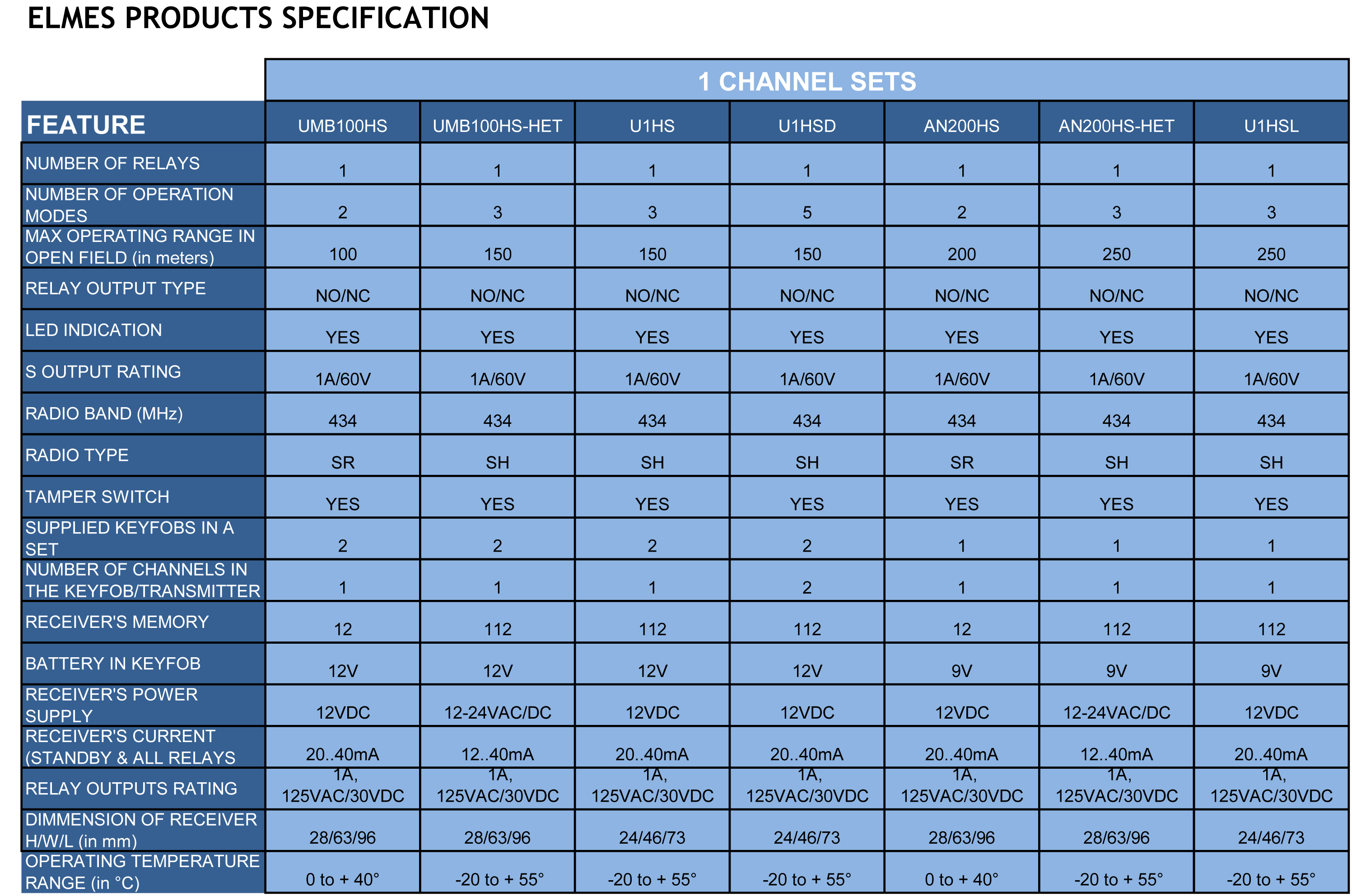

Specyfication:
specification
