ONE CHANNEL SET, RECEIVER WITH 12-24V POWER SUPPLY

UMB100HS-HET  set
UMB100HS-HET
Catalogue card:

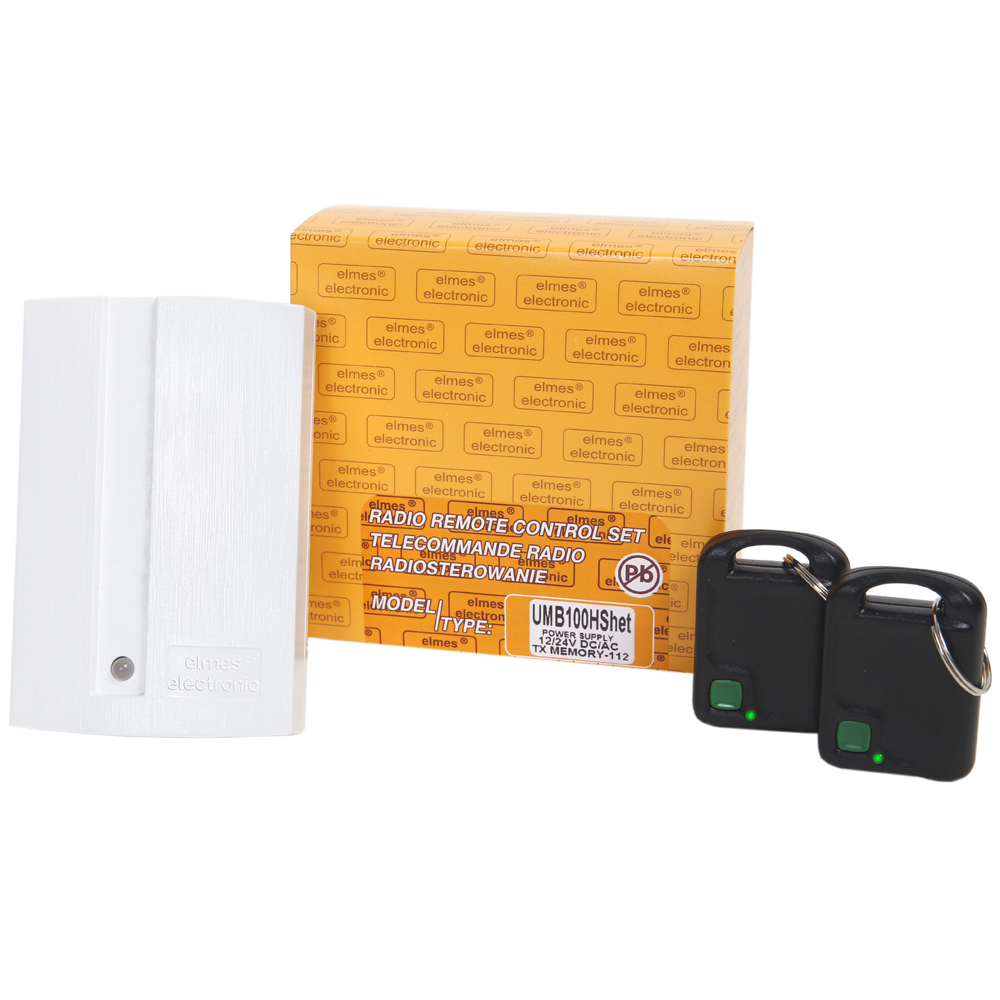

The UMB100HS-HET set consists of one receiver UMB100HR-HET and two UMB100HT keyfob transmitters. The unique feature of the receiver UMB100HR-HET is wide range of power supply voltage as specified below. The receiver features excellent sensitivity, selectivity and complies with the latest EU relevant standards concerning SRD (Short Range Devices) of remote control products. The UMB100HS-HET includes many useful functions as below:



Receiver's basic operation modes to be selected by user

  • ON/OFF (bistable output mode)
  • automatic OFF after programmed time (monostable output mode timing: from 0,25s up to 4 hrs)
  • winch control mode



Technical specification

  • dynamic code system KEELOQ of  Microchip Corp. USA
  • operating frequency: 433,92 MHz
  • number of channels/relay ourputs: 1
  • average range: 150m in open field
  • receiver’s memory: 112 keyfobs
  • receiver’s power supply: 10..35 VDC or 12..27 VAC
  • output relay ratings:  1A, 120VAC/30VDC
  • superheterodyne receiver module with sensitivity: -105 dBm,
  • current consumption:

 - at 12VDC: 12 mA + 28 mA relay set on,
 - at 24VDC: 6 mA + 14 mA relay set on,

  • operating temperature range from -20 to + 40C,
  • signal output S (1A/60V max.)  OC type,
  • sabotage alarm terminal NC type (at box closed)
  • external dimmensions: (L/W/D) 96/63/28mm.

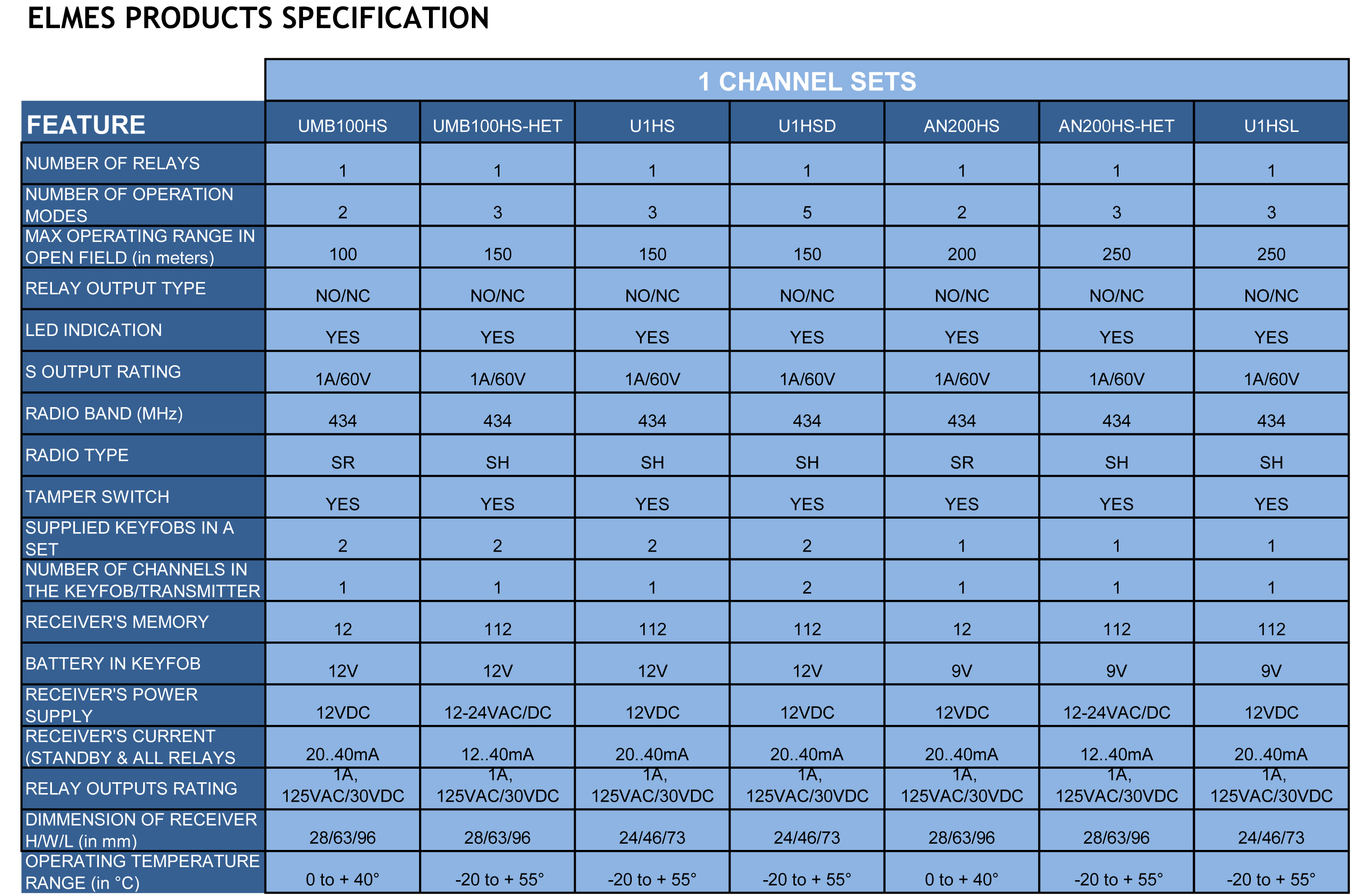

Specyfication:
specification
