WIRELESS ALARM CONTROL PANEL WITH BUILT-IN GSM MODULE

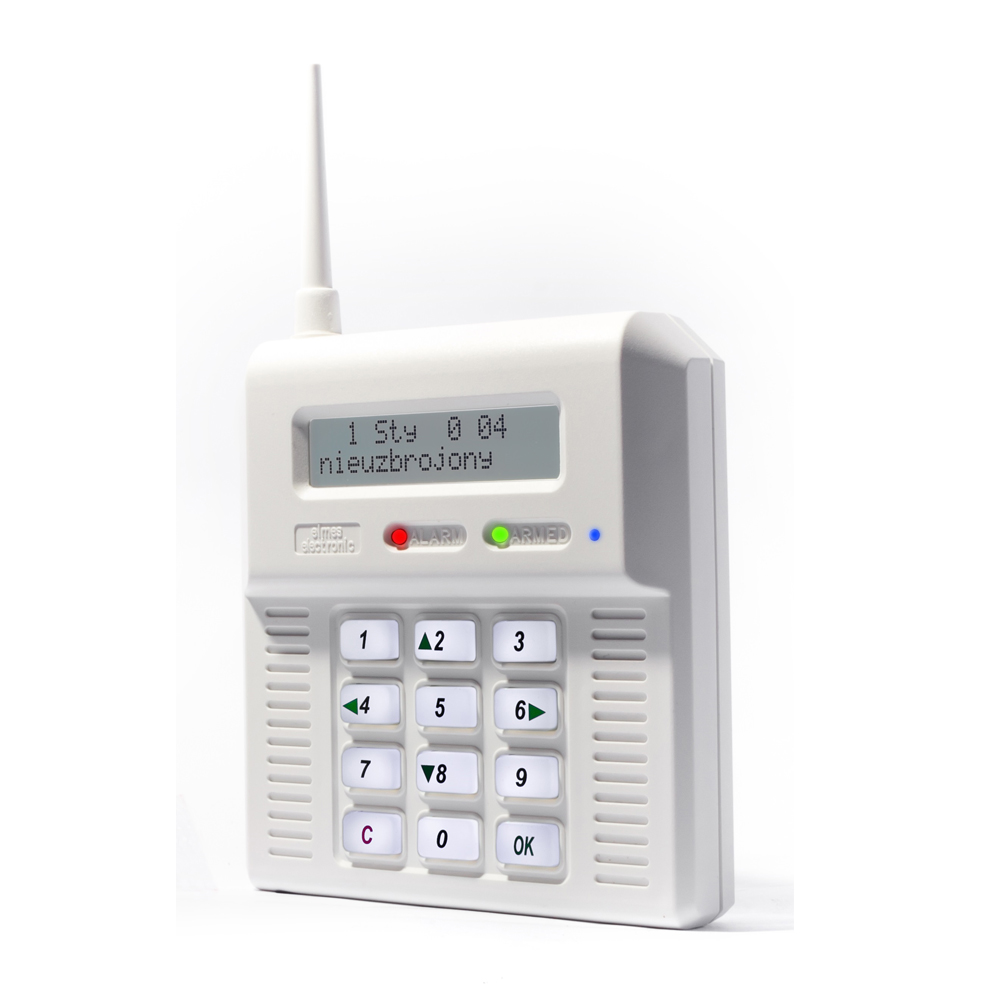

CB32G - wireless alarm control panel with built-in GSM module.
 Elmes Electronic CB32G is a programmable, wireless alarm control panel with integrated mobile phone module, designed for use in anti-robbery, intrusion detection and access control installations. It operates with any Elmes Electronic made wireless detectors, RP501T transmitter, remote control transmitters and two wired detectors. Its three 1A current rated fused alarm signalling outputs are designed for connecting external signalling devices such as sirens, bells strobes and automatic alarm notification devices. The panel features a real-time clock, non-editable memory log of last 256 events and may be programmed to be remotely armed and disarmed by SMS and CLIP as well as send SMS alarm, status, failure and event notifications. Backlit LCD panel displays appropriate status information while numeric keypad allows convenient programming of the control panel. In the event of AC power failure, dedicated software procedures initiate low energy consumption mode allowing over 24-hour panel autonomous operation with two internal 600-850mAh Li-ION rechargeable batteries (type 14500 – AA size). The panel supports up to 16 system users and enables monitoring of up to 32 wireless and two parametric wired detectors identified as alarm zones. Each user and alarm zone can have any user defined 16 characters name.The CB32G control panel may be connected to any wired alarm system to support wireless detectors operation. It may be powered from the power supply line of the wired system, and its three signalling outputs can be connected to alarm detection terminals of wired control panel.



CB32GZ - alarm panel with built-in GSM module. Green backlight of LCD and keyboard.
CB32GN - alarm panel with built-in GSM module. Blue backlight of LCD and keyboard.
CB32GZ - alarm panel with built-in GSM module. Green backlight of LCD and keyboard.
CB32GB - alarm panel with built-in GSM module. White backlight of LCD and keyboard.
USB-RS -  PC/CB32G interface wire. Sold separately.
Battery supply 3.7V , 14500, 750mAh - optional for CB32G. Sold separately.

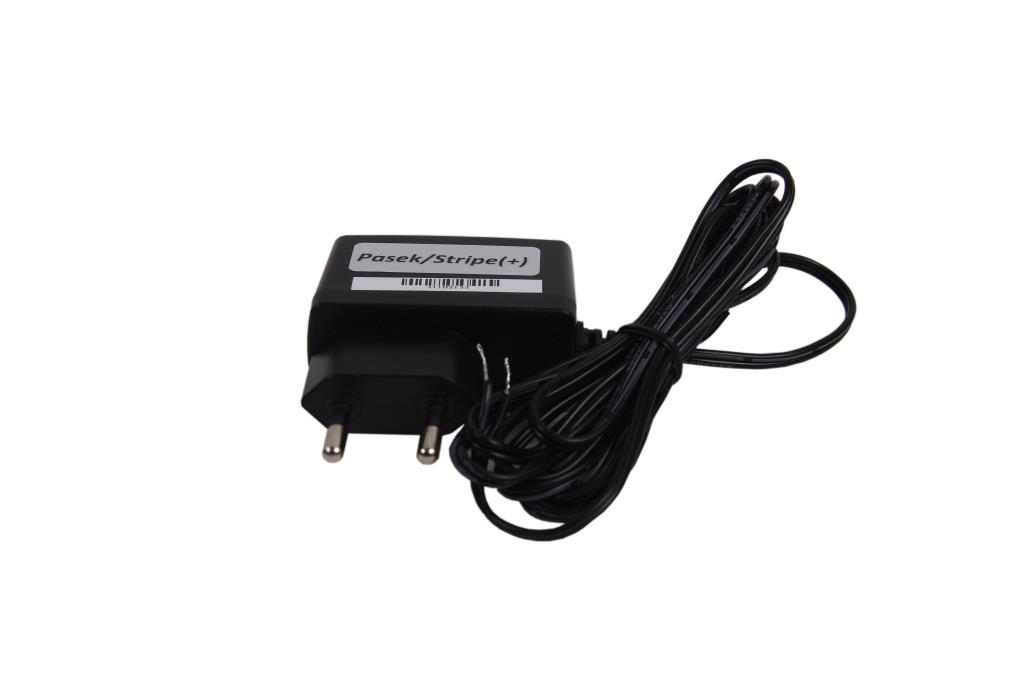

Power supply 12V/1,25A - optional for CB32G. Sold separately.
