TWO CHANNEL MINIATURE SET

DWM50HMS set
DWM50HMS
Catalogue card:

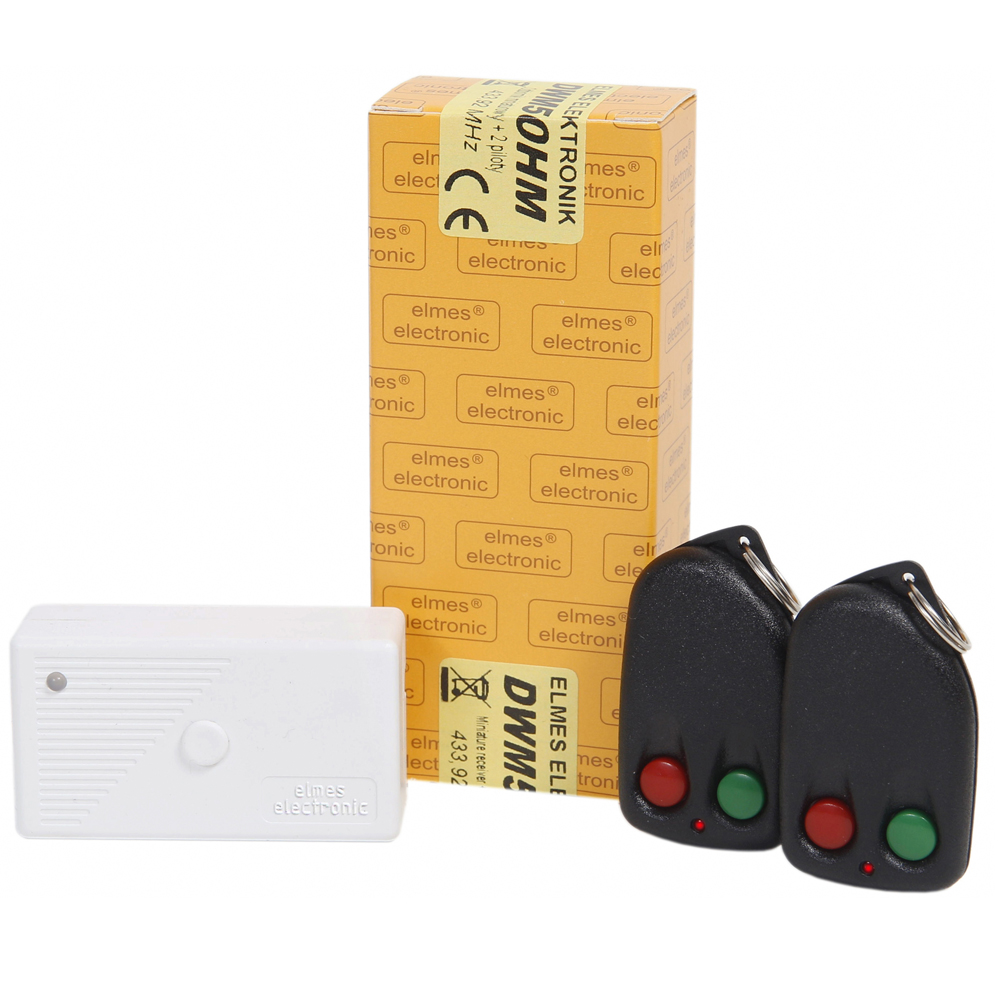

The DWM50HMS set consists of DW200HMR two channel mini receiver and two DWM50HT dual channel mini keyfob transmitters. The set may be used in alarm systems for remote starting of entry delay, system arming/disarming or as universal remote control where a miniature in size receiver is required.



Technical specification

  • dynamic code system KEELOQ of  Microchip Corp. USA
  • operating frequency: 433,92 MHz
  • receiver memory capacity: 12 keyfobs
  • Power Supply: 12 VDC  (24VDC option)
  • Output Relay Ratings: 1A, 120VAC/30VDC
  • Number of channels/relay ourputs: 2
  • Approximate range in open field: 50m
  • ON/OFF (bistable output mode)
  • automatic OFF after programmed time (monostable output mode timing: from 0,25s up to 4 hrs)
  • current consumption 12 mA + 28 mA relay set on
  • operating temperature range from 0 to + 40C,
  • signal output S (1A/60V max.)  OC type,
  • sabotage alarm terminal NC type (at box closed)
  • external dimmensions of the receiver: (L/W/D) 58/32/19 mm.

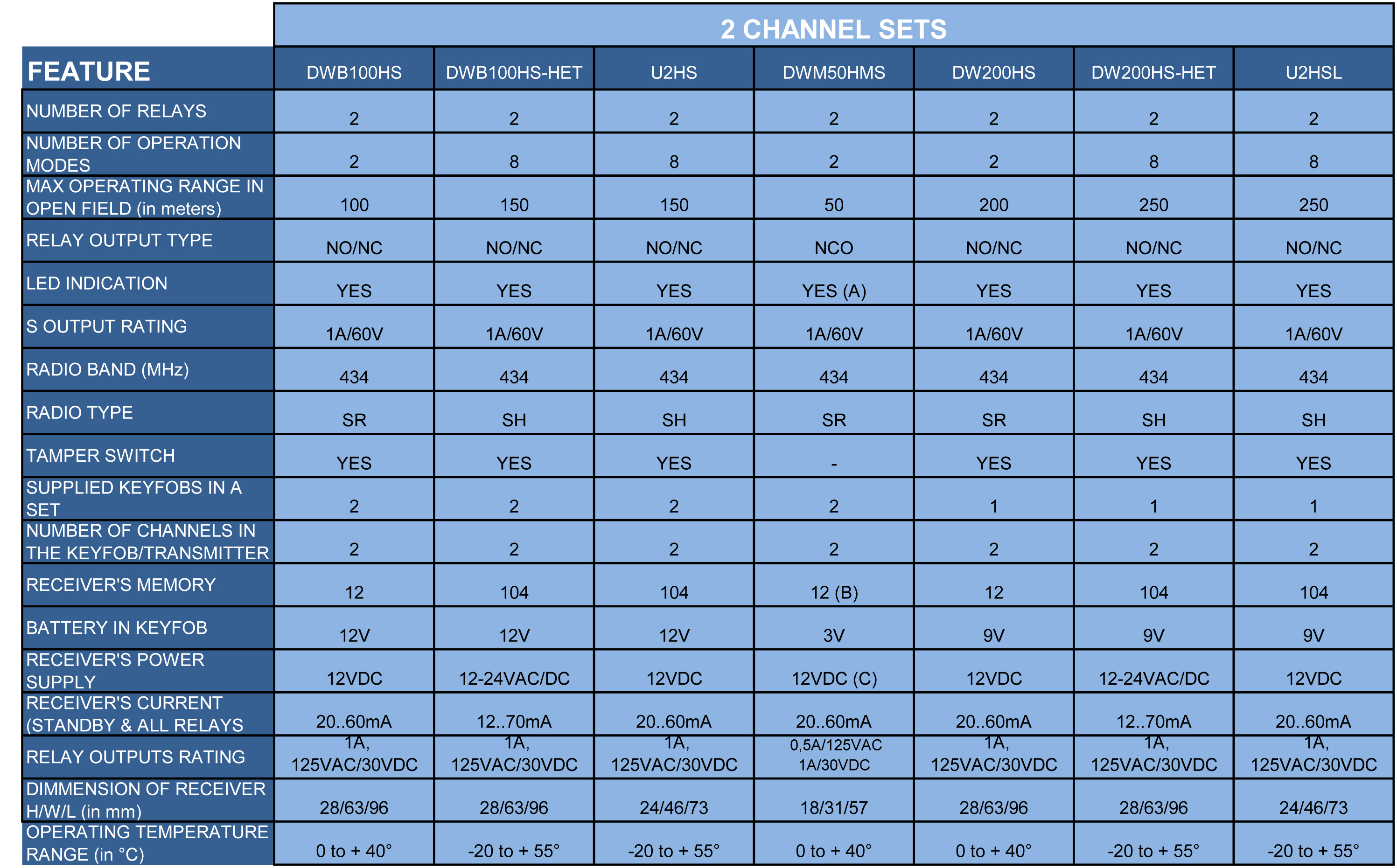

Specyfication:
specification
